Flow Models
Flow models put air where you want it
Flow models are determined by the requirements of the space

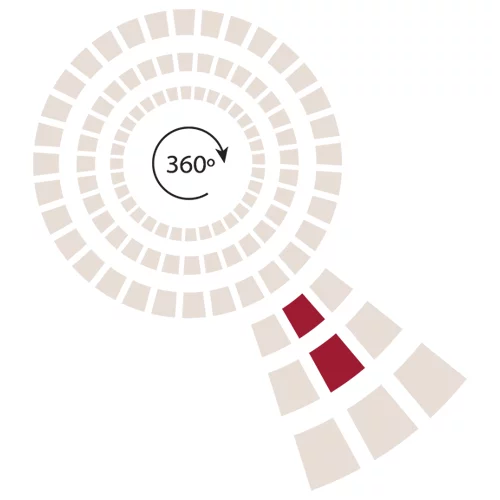

DIRECTIONAL AIRFLOW
Directional flow models have a row or more of laser cut holes along the length of the duct to deliver air exactly where it is needed.

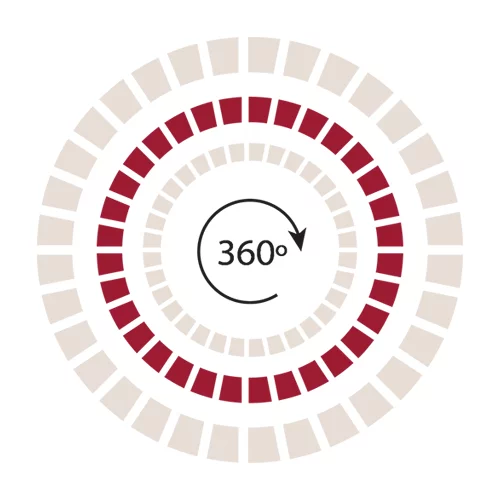

SURFACE AIRFLOW
Surface flow model distribute air through the surface of the duct through permeable fabrics or microperforations.
OriFlow
Laser cut holes
Exit velocity: 9.0 – 18.0 m/s
Diameter of holes: 14.1-125.0 mm
Throw: High
MicroFlow
Laser cut microperforations
Near zone: Maximum 300 mm
Diameter of microperforations: 0.2 – 0.6 mm
SonicFlow
Laser cut perforations
Exit velocity: 9.0 – 18.0 m/s
Diameter of perforations: 3.0 – 14.0 mm
Throw: Medium
PerfoFlow
Laser cut perforations
Near zone: Maximum 6.400 mm
Diameter of microperforations: 3.0-14.0 mm
